How to troubleshoot a Modbus timeout without guessing

First separate TCP from RTU

For Modbus TCP, prove IP connectivity and the listening port first. For Modbus RTU, prove the COM port, serial settings and RS-485 physical layer first. The troubleshooting path is different, even though the Modbus function codes are the same.

How do you fix a Modbus TCP timeout?

1. Ping the device if it responds to ICMP.
2. Confirm the IP address and subnet are correct for your PC.
3. Confirm the Modbus TCP port—502 is common but not universal.
4. Check firewalls, VPNs, routing and NAT between the PC and device.
5. Verify the Unit ID if the TCP device is actually a gateway to downstream RTU slaves.
6. Reduce the request to one known register with FC 03 or FC 04.
7. Increase timeout temporarily if the gateway/device is slow, but do not use a long timeout to hide a persistent fault.

How do you fix a Modbus RTU timeout?

1. Confirm the correct COM port.
2. Match baud rate, parity, data bits and stop bits exactly.
3. Confirm the slave ID.
4. Verify A/B polarity and cable continuity.
5. Use a daisy-chain layout with sensible termination.
6. Test one slave directly before reconnecting the full bus.
7. Check whether another master is transmitting on a network intended for single-master operation.

See the RS-485 wiring guide for termination and topology details.

Why does only one register block time out?

If some registers read correctly but one block fails, the physical link is probably not the primary problem. Check the function code, starting address, quantity and device map. Some devices react poorly to oversized requests or to reads that cross an unsupported address gap.

Try a quantity of 1 at a known-good address, then expand gradually. Also verify whether the manual uses 40001-style references or true protocol offsets.

Watch timing and polling load

Polling too many registers too quickly can overload slow serial devices or gateways. On RTU, every request/response consumes bus time. Start with a conservative poll interval, verify stability, then reduce the interval while watching response time and error counts.

To test how your own master or SCADA copes with a slow device, point it at the ModbusBB simulator and set a response delay plus random jitter. See the simulator guide.

If errors appear only when several devices are polled, check bus loading, termination, duplicate slave IDs and gateway serial queue limits.

What can the raw traffic tell you?

The most important diagnostic question is simple: did the application send a frame, and did any bytes come back? Repeated TX frames with no RX point toward reachability, wiring, wrong serial settings, a wrong slave ID or a device that is not listening. An exception response means the connection works and the problem is in the protocol or addressing.

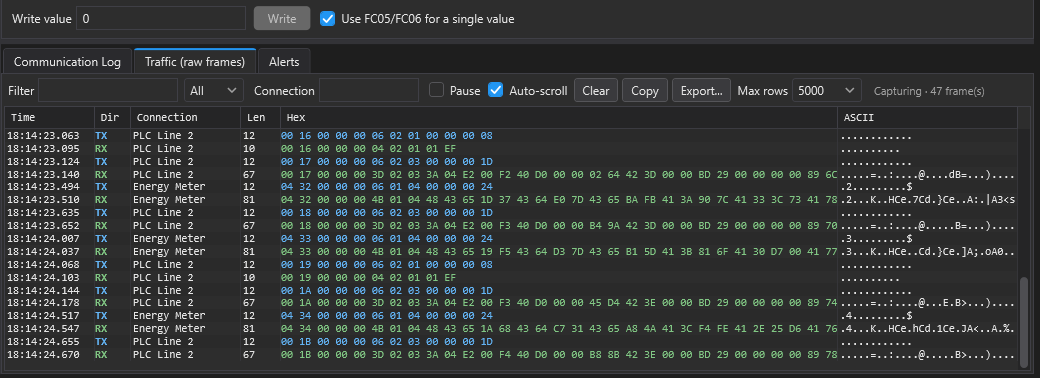

In ModbusBB 2.0, open View > Traffic Monitor (raw frames). It lists every TX and RX frame as hex with a timestamp, the connection name and the length. You can filter by text (hex, ASCII or connection name), by direction (TX/RX) and by connection. You can also pause, copy selected rows and export to CSV or TXT. Frames are captured only while the Traffic tab is visible, so open it before you reproduce the fault. See the traffic monitor documentation.

Click to enlarge

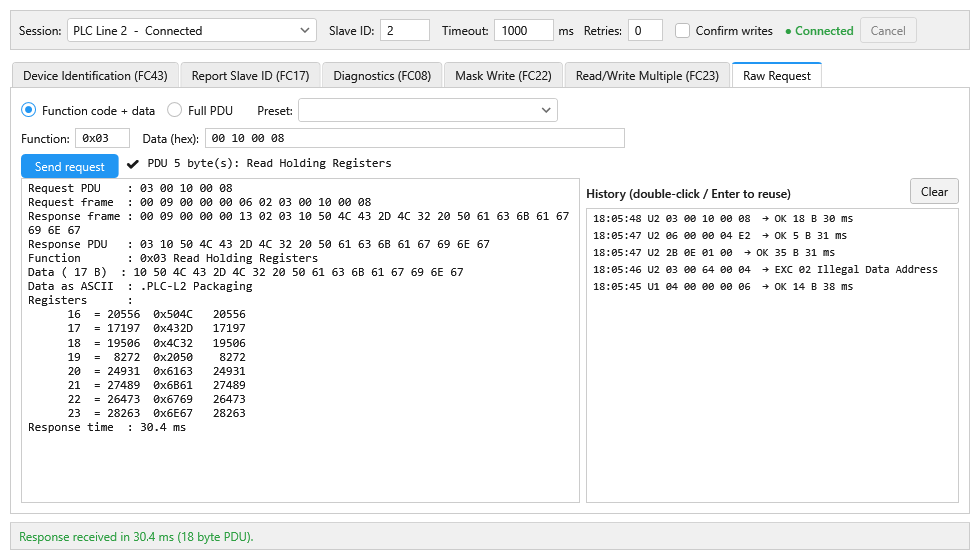

To test one specific request without touching your poll setup, use Tools > Device Tools > Raw Request. Enter a function code and data bytes, or a full PDU. ModbusBB adds the MBAP header or the slave address and CRC for the transport and shows the request and response frames. Exception replies are displayed rather than treated as a failure. From the command line, add --trace to any command to print the TX/RX hex frames to stderr:

Click to enlarge

How do you measure timeouts and loss?

A single successful read does not prove that the link is stable. The CLI stats command sends a series of single-register reads with no retries. It reports requests sent, valid responses, exception replies, timeouts, other errors and requests with no response. Loss % is calculated as the requests with no response at all divided by the requests sent; exception replies count as responses. It also reports the average, minimum, median, 95th-percentile and maximum response time.

In the GUI, Tools > Connection Statistics shows each connection’s status, retries, timeout and auto-reconnect setting. It also shows the OK and error count of every poll. See the stats command reference.

Retries and automatic reconnect

Retries hide short glitches, and they can also hide a real problem. By default, ModbusBB 2.0 retries a failed request 3 times with a 250 ms pause. When a link drops, it reconnects automatically with back-off: the first attempt comes after 1000 ms, the delay doubles on each attempt up to 30000 ms, and it keeps trying indefinitely (max attempts 0). You can change all of these per connection in the Timing panel. While you are troubleshooting, set retries to 0 (CLI: --retries 0) so that every lost response shows up as an error rather than a slow success.
